Motion Control Suspension

MCS 3-Way Triple-Adjustable Damper Kit

MCS 3-Way Triple-Adjustable Damper Kit

Regular price $9,900.00
Regular price Sale price $9,900.00
Sale Sold out
Style

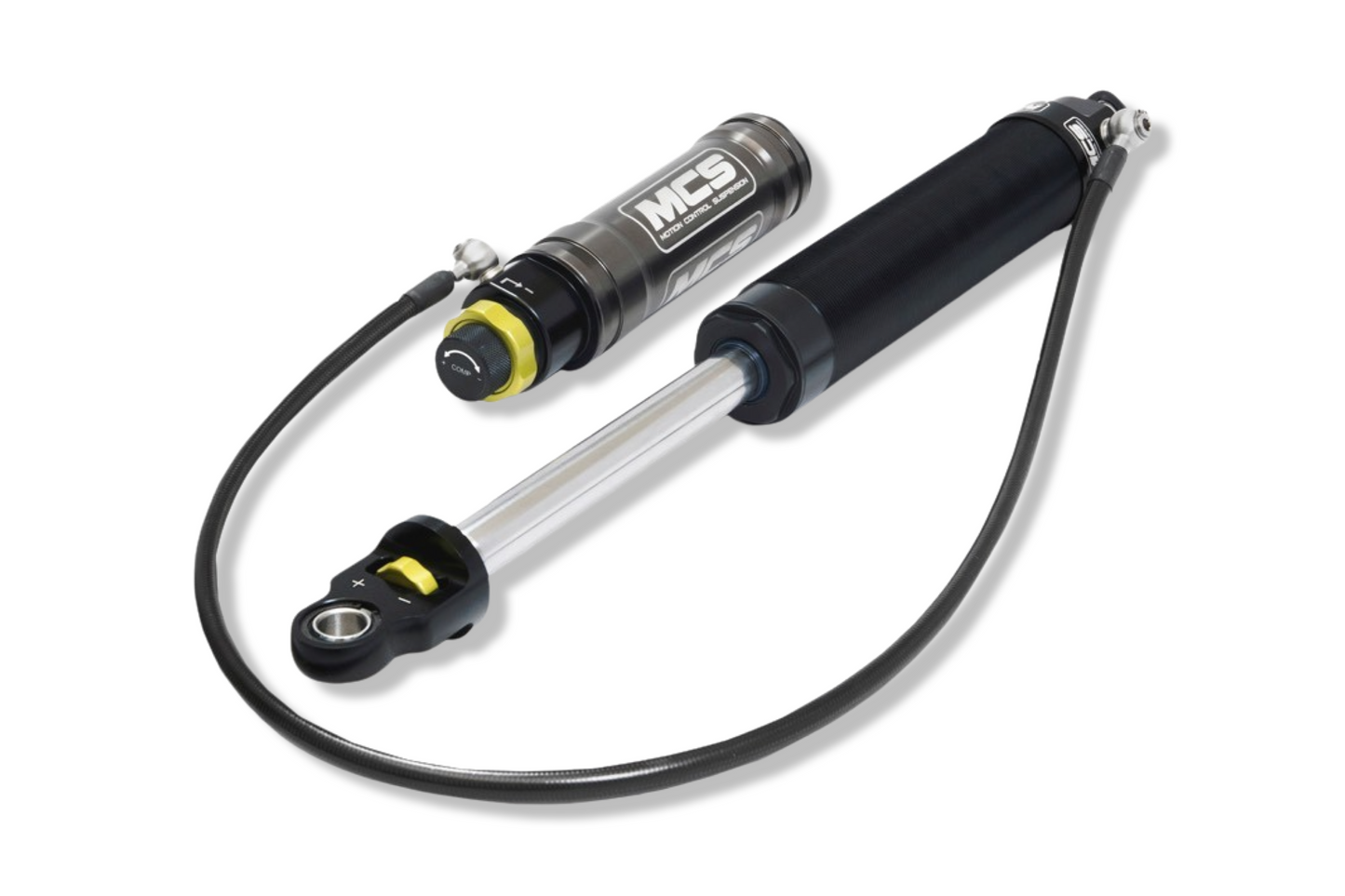

The MCS 3W damper is a triple-adjustable damper with external reservoirs which allow for adjustment of the gas pressure in the damper. High speed compression, low speed compression, and rebound damping forces are independently adjustable with the compression adjusters located on the reservoir head and the rebound adjuster located on the shaft-end.

High Speed Compression damping forces are controlled by a large blow-off valve located directly on the reservoir main piston for the most precise and accurate damping control, and not a needle valve with a smaller effective adjustment range before the needle is too far out of the orifice to influence flow.

Low Speed Compression damping forces are controlled through orifices located at the compression main piston assembly in the reservoir head and allow for precise hydraulic control of damper oil.

Rebound damping forces are controlled through orifices located at the main piston assembly in the damper body and allow for precise hydraulic control of damper oil through the main piston. Utilizing orifices introduces the ability to have a wide operating range, avoiding pesky re-valves, consistency in damping adjustment per click, and virtually eliminates fatigue with usage.

Gas pressure can be adjusted through a schrader valve located at the end of the remote reservoir, allowing you to increase or decrease the overall support to the vehicle. Reservoir pressure can be adjusted between 100 – 275 PSI to help support the platform in fast cornering that generate large loads or allow more weight transfer to generate more traction in low grip scenarios.

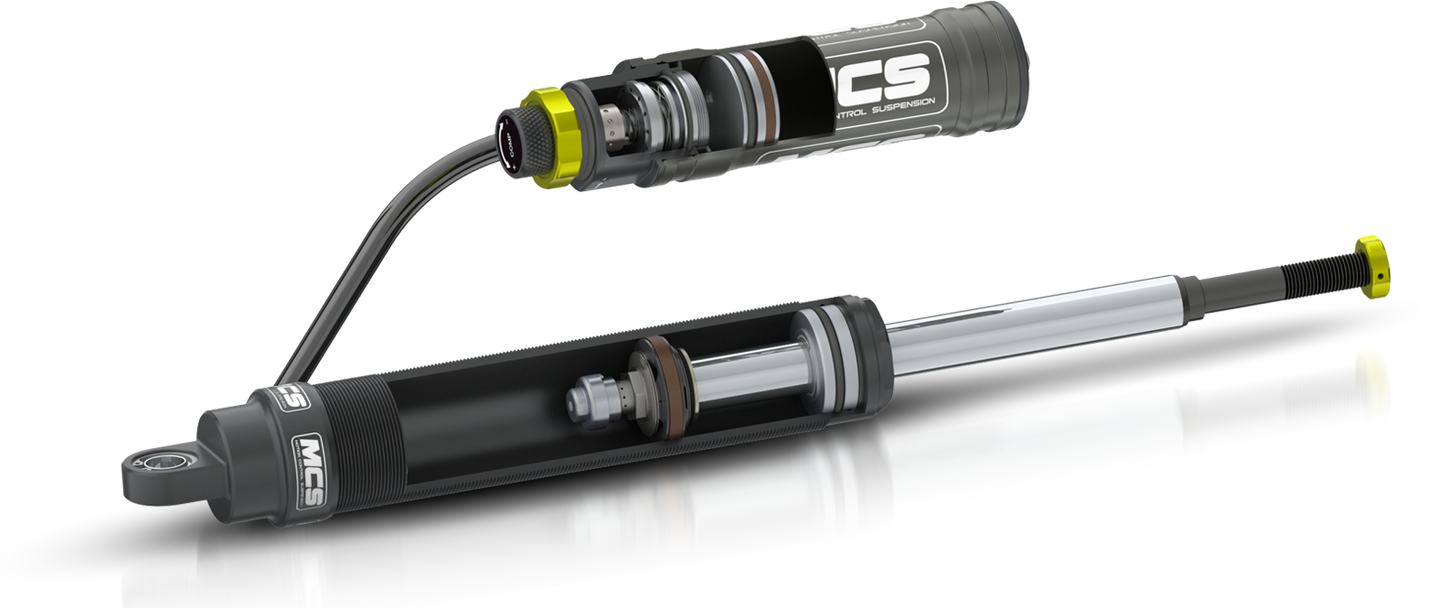

These dampers are packed with technical features but with an elegantly clean execution. The monotube design is very stable with more oil capacity and better heat dissipation than twin tube dampers. Large shafts give extremely high, low-friction side-load support unmatched by shocks inverted and converted for strut applications. The large main piston gives quick, accurate damper response and the divider piston separates oil and gas, eliminating cavitation which often causes noise and sloppiness.

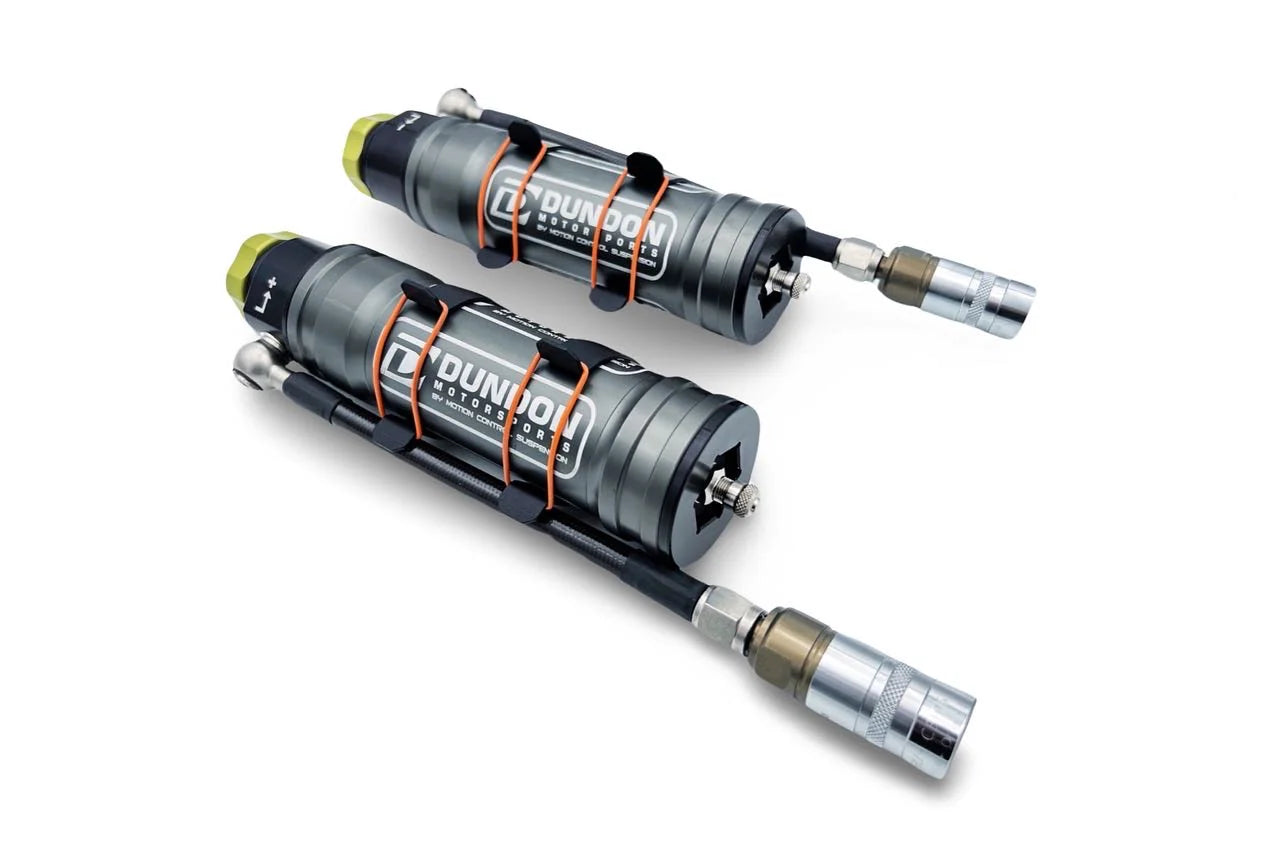

Remote reservoirs give superior fluid temperature control and are available (or standard depending on application) with Staubli dry-breaks for easy installation.

Adjustability:

  • High Speed Compression - 18 clicks
  • Low Speed Compression - 10 clicks
  • Rebound - 18 clicks
  • Reservoir Pressure Range - 100-275PSI

Spring Kit:

Please indicate if you are looing for Sport or Race spring kit. If you need any help, please contact us.
